Hydraulic Auto Feeding & Cutting Machines
750000 INR
Product Details:
- Product Type Hydraulic Auto Feeding
- Type Hydraulic Cutting Machine
- Automatic Yes
- Control System PLC Control
- Drive Type Electric
- Click to view more
X
Hydraulic Auto Feeding & Cutting Machines Price And Quantity
- 1 Unit
- 750000 INR
Hydraulic Auto Feeding & Cutting Machines Product Specifications
- Yes
- Electric
- PLC Control
- Hydraulic Cutting Machine
- Hydraulic Auto Feeding
Hydraulic Auto Feeding & Cutting Machines Trade Information
- Cheque Cash in Advance (CID) Cash Advance (CA)
- 1 Unit Per Month
- 2 Months
- South America Australia Eastern Europe Middle East Central America Western Europe Asia North America Africa
- All India
Product Description

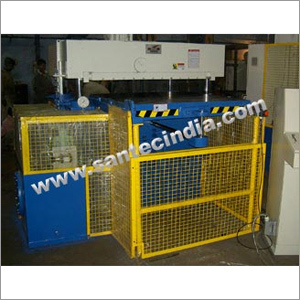

Hydraulic Auto Feeding & Cutting Machines
Santec has the capability to design and manufacture all kinds of Hydraulic Cutting Machines from 40T to 200T, either single-side or double-side auto in feeding arrangement. The fully balanced system is provided with board rotation system for enhanced productivity. Hydraulically operated, these machines are user-friendly and needs no special training for operation. Apart from standard cutting machines, cutting machines, we also supply custom built presses based on the client's requirements.
Santec's Hydraulic Auto Feeding Cutting Machines are widely used in polyurethane processing to cut materials such as leather, rubber, plastics, cardboard, cloth, foam, nylon, leatherette fabric, and PVC. They find application in diverse industries including:
- Leather processing
- Shoe-making
- Case & bag
- Packaging
- Toys
- Stationery
- Automobile
- Industry for fabric, felt, comet, foam Trimming. Pu Processing Industry to cut materials such as leather, rubber, plastic etc.
Salient Features
Some of the salient features of Hydraulic Auto Feeding Machines are as follows
- The machine is perfectly suitable for cutting one layer or multiple layers of leather, rubber, plastic plastics packing, textile and chemical fiber etc. with profile cutter/knife
- The operation is simple, with low malfunction, strong cutting pier and high cutting speeds.
- Double oil cylinder and precise four-column automatic balance connecting rod structure, which provides absolutely same cutting depth of each cutting position.
- When pressing the cutting board, the machine con cut automatically and slowly to make no size error between the uppermost layer and the uppermost layer of the material
- User friendly control with safe operation High cutting force, steady cutting action multi level cutting in single stroke linear movement with vibration free and noiseless operation
- Adjustable forward and backward pressure: you con adjust the toward and backward speed easily.
- For feeding board/fabric - the movement is linear hence noiseless &vibration free.
Optional:
- Single-side and double-side automatic feeding systems
- Die cutter pneumatic clam device
|
Maximum Cutting Force |
40 Tons |
50 Tons |
60 Tons |
80 Tons |
100 Tons |
150 Tons |
200 Tons |
|
Distance From Upper Pressing Board to Workable |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
|
Cutting |
1600 x 610mm |
1600 x 800mm |
1600 x 900mm |
1600 x 900mm |
1600 x 900mm |
1600 x 1000mm |
1600 x 1000mm |
|
Main Motor Power |
3KW |
4KW |
5.5KW |
7.5KW |
7.5KW |
11KW |
11KW |
|
Machine |
6000 KGS |
7000 KGS |
8000 KGS |
10000 KGS |
12000 KGS |
14000 KGS |
16000 KGS |
